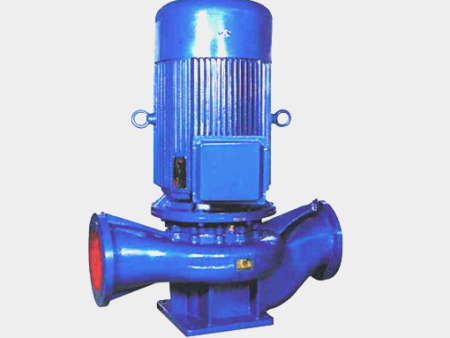

ISG型离心清水管道泵

联系人: 苏经理
电 话: 021-56419915、56419913
手 机: 18017622446、18017938218、18968900063
价格: 价格面议
更多信息
分享:
下一条: ISW管道泵

摘要

性能及优点

节能,采用管道式结构安装方便, 机电一体,占地面积小 ,维修方便,只须拆下泵盖螺母,取出电机及传动组件即可检修,应用范围广

产品介绍

性能及优点

  节能,采用管道式结构安装方便, 机电一体,占地面积小 ,维修方便,只须拆下泵盖螺母,取出电机及传动组件即可检修,应用范围广

应用范围

  ISG型离心清水管道泵是本公司结合IS离心泵和SG型管道泵之优点设计面成,采用ISO2858国际标准。适用于高层建筑、园林喷灌、管道增压、冷热水循环、冷却塔止水、远距离输水、制冷冲洗、浴室等场合吸、送增压、循环之用,是替代IS、BA型离心泵、SG型管道泵理想产品。使用温度80℃以下。

技术参数


     流      量:6.3-1600m3/h
     扬      程:5-150m
     转      速:980-2900r/min
     口      径:Φ15-Φ500
     温度范围:0~+120℃
     工作压力:≤1.6MPa

型号意义





性能参数表


型号流量Q扬程(m)效率(%)转速(r/min)电机功率(kW)必需汽蚀余量(NPSH)r重量(kg)
(m3/h)(L/S)
15-801.50.4283428000.182.317
20-1102.50.69153428000.372.325
20-1602.50.69322529000.752.329
25-11041.11154229000.552.326
25-125441.11203629000.752.328
25-125A3.61.0163529000.552.327
25-16041.11323229001.52.339
25-160A3.71.03283129001.12.334
32-1004.512.512.54429000.552.027
32-100(I)6.31.7512.55429000.752.032
32-12551.39204429000.752.328
32-125A4.51.25164329000.552.328
32-1606.55324429001.52.339
32-160A41.1253429001.12.038
32-160(I)6.31.75324029002.22.047
32-2004.512.55032290032.055
32-200(I)6.31.755033290042.043
32-200A41.11444029002.22.074
40-1006.31.7512.55429000.552.332
40-100A5.61.56105229000.372.332
40-1256.31.75204629001.12.334
40-125A5.61.56164529000.752.333
40-1606.31.75324029002.22.347
40-160A5.91.64283929001.52.343
40-160B5.51.53243829001.12.338
40-2006.31.755033290042.374
40-200A5.91.644431290032.362
40-200B5.31.47362929002.22.352
40-2506.31.75802829007.52.3105
40-250A5.91.64702829005.52.398
40-250B5.51.536027290042.377
40-100(I)12.53.4712.56229001.12.334
40-100(I)A113.05106029000.752.332
40-125(I)12.5347205829001.52.338
40-125(I)A113.05165729001.12.333



型号流量Q扬程(m)效率(%)转速(r/min)电机功率(kW)必需汽蚀余量(NPSH)r重量(kg)
(m3/h)(L/S)
40-160(I)12.53.473252290032.356
40-160(I)A11.73.25285129002.22.347
40-160(I)B10.42.89225029001.52.343
40-200(I)12.53.47504629005.52.385
40-200(I)A11.73.254445290042.375
40-200(I)B10.62.943644290032.363
40-250(I)12.53.4780382900112.3145
40-250(I)A11.63.22703829007.52.395
40-250(I)B10.83.0603729005.52.394
40-250(I)C10.02.78523629005.52.388
50-10012.53.4712.56229001.12.336
50-100A113.05106029000.752.335
50-12512.53.47205829001.52.343
50-125A113.05165729001.12.338
50-16012.53.473252290032.359
50-160A11.73.25285129002.22.351
50-160B10.42.89225029001.52.347
50-20012.53.47504629005.52.3101
50-200A11.73.254445290042.380
50-200B10.62.943644290032.368
50-25012.53.4780382900112.3160
50-250A11.63.22703829007.52.3115
50-250B10.83.0603729005.52.3114
50-250C10.02.78523629005.52.3108
50-100(I)256.9412.56929001.52.541
50-100(I)A22.36.19106729001.12.536
50-125(I)256.942068290032.556
50-125(I)A22.36.19166629002.22.548
50-160(I)256.943263290042.572
50-160(I)A23.46.52862290032.571
50-160(I)B21.66.0245829002.22.559
50-200(I)256.94505829007.52.5108
50-200(I)A23.56.53445729005.52.5107
50-200(I)B21.86.063855290042.5100
50-250(I)256.9480502900152.5175



型号流量Q扬程(m)效率(%)转速(r/min)电机功率(kW)必需汽蚀余量(NPSH)r重量(kg)
(m3/h)(L/S)
50-250(IA)23.46.570502900112.5165
50-250(I)B21.66.0604929007.52.5165
50-315(I)256.94125402900302.5310
50-315(I)A23.76.58113402900222.5245
50-315(I)B22.56.2510139290018.52.5215
50-315(I)C20.65.7285382900152.5195
65-100256.9412.56929001.52.546
65-100A22.36.19106729001.12.541
65-125256.942068290032.558
65-125A22.36.19166629002.22.549
65-160256.943263290042.575
65-160A23.46.52862290032.575
65-160B21.66.0245829002.22.563
65-200256.94505829007.52.5107
65-200A23.56.53445729005.52.5107
65-200B21.86.063855290042.5100
65-250256.9480502900152.5180
65-250A23.46.570502900112.5170
65-250B21.66.0604929007.52.5170
65-315256.94125402900302.5320
65-315A23.76.58113402900222.5255
65-315B22.56.2510139290018.52.5225
65-315C20.65.7285382900152.5205
65-100(I)5013.912.573290033.063
65-100(I)A44.712.4107229002.23.053
65-125(I)5013.92072.529005.53.099
65-125(I)A4512.51671290043.078
65-160(I)5013.9327129007.53.0103
65-160(I)A46.713.0287029005.53.0103
65-160(I)B43.312.02469290043.097
65-200(I)5013.950672900153.0176
65-200(I)A4713.144662900113.0166
65-200(I)B43.512.1386529007.53.0114
65-250(I)5013.980592900223.0235
65-250(I)A46.713.07059290018.53.0205


ISG、ISGB、ISW 系列离心泵


型号流量Q扬程(m)效率(%)转速(r/min)电机功率(kW)必需汽蚀余量(NPSH)r重量(kg)
(m3/h)(L/S)
80-250(I)10027.880692900374.0330
80-250(I)A93.526.070682900304.0315
80-250(I)B8724.260662900224.0315
80-315(I)10027.8125662900754.0675
80-315(I)A9526.4113662900554.0535
80-315(I)B9025101652900454.0420
80-315(I)C8222.885632900374.036
100-10010027.812.57629005.54.5113
100-100A89471074290044.591
100-12510027.820762900114.5169
100-125A8924.7167429007.54.5118
100-16010027.832762900154.5191
100-160A93.526.028742900114.5181
100-160B86.624.1247229007.54.5181
100-20010027.850742900224.0245
100-200A93.526.04473290018.54.0215
100-200B8724.238712900154.0193
100-25010027.880692900374.0345
100-250A93.526.070682900304.0330
100-250B8724.260662900224.0330
100-31510027.8125662900754.0689
100-315A9526.4113662900554.0549
100-315B9025101652900454.0439
100-315C8222.885632900374.0385
100-100(I)16044.412.5732900114.5115
100-125(I)16044.420742900154.5168
100-125(I)A1403917722900114.5168
100-160(I)16044.432792900225.6210
100-160(I)A140392876290018.55.0210
100-200(I)16044.450792900375.2402
100-200(I)A1403945742900304.5395
100-200(I)B10027.840722900224.5360
100-250(I)16044. 480772900554.8560
100-250(I)A1403972722900454.5420
100-250(I)B10027.865702900374.5400



型号流量Q扬程(m)效率(%)转速(r/min)电机功率(kW)必需汽蚀余量(NPSH)r重量(kg)
(m3/h)(L/S)
100-35010027.8153.6572900904.0950
100-350A8724.2142752900754.0830
100-350B8222.8135752900554.0600
125-10016044.412.5822900114.0180
125-100A14339.7107729007.54.0125
125-12516044.420802900154.0220
125-125A14339.716772900114.0210
125-1601604.432782900224.0265
125-160A15041.72876290018.54.0230
125-160B13838.324732900154.0215
125-20016044.450772900375.5395
125-200A15041.744762900305.5380
125-200B13838.337.5752900225.5320
125-25016044.480752900555.5580
125-250A15041.770742900455.5490
125-250B13838.360732900375.5430
125-31516044.7125702900905.5790
125-315A15041.7110702900755.5710
125-315B14339.7100692900755.5705
125-315C13437.288672900555.5585
150-12516044.424762900114.0210
150-125A15041.7167729007.54.0130
150-16016044.432752900224.0270
150-160A15041.72876290018.54.0230
150-160B1403924732900154.0220
150-20020055.612.5781450153.0265
150-200A17649.710761450113.0244
150-200B1403938751450224.0275
150-25020055.62079145018.53.0300
150-250A184.451.217781450153.0262
150-250B16746.414761450113.0241
150-3152055.632781450302.5410
150-315A18751.928771450223.5335
150-315B17348.12476145018.53.5315
150-35016044.41508029001105.5970





型号流量Q扬程(m)效率(%)转速(r/min)电机功率(kW)必需汽蚀余量(NPSH)r重量(kg)
(m3/h)(L/S)
150-350A15041.7142702900905.5790
150-350B14039135762900755.5705
150-40020055.650751450453.5490
150-400A18751.944741450373.5454
150-400B17448.338731450303.5435
150-400C16044.432711450223.5365
150-250(I)20055.680762900754.5702
150-250(I)A18751.970752900554.5561
150-250(I)B17348.160742900454.5460
150-315(I)2055.61257329001104.5980
150-315(I)A18751.9110722900904.5800
150-315(I)B17348.195702900754.5724
200-20020055.612.5781450153.0265
200-200A17949.710761450113.0244
200-25020055.62079145018.53.0305
200-250A184.451.217781450153.0267
200-250B16746.414761450113.0246
200-31520055.632781450303.5417
200-315A18951.928771450223.5342
200-315B17348.12476145018.53.5322
200-40020055.650751450453.5498
200-400A18751.944741450373.5462
200-400B17448.638731450303.5443
200-400C16044.432711450223.5373
200-200(I)400111.112.5801450224.0382
200-200(I)A35899.41078145018.54.0346
200-250(I)400111.420801450304.0475
200-250(I)A35899.614781450224.0405
200-250(I)B32289.41375145018.54.0387
200-315(I)400111.432801450554.0675
200-315(I)A374103.928791450454.0560
300-315(I)B34696.124781450374.0535
200-400(I)400111.450811450754.0830
200-400(I)A374103.944801450754.0830
200-400(I)B34696.138781450555.0685
200-400(I)C32088.932761450455.0580




型号流量Q扬程(m)效率(%)转速(r/min)电机功率(kW)必需汽蚀余量(NPSH)r重量(kg)
(m3/h)(L/S)
250-250550152.820821450455.0620
250-250A50013917801450375.0550
250-23550013912.5781480224.5410
250-30050013920781480374.5550
250-315550152.832801450755.5890
250-315A50013928781450555.5690
250-315B45012524741450455.5620
250-40050013950721480904.51530
300-23572020018811450555.01075
300-235A60016615791450455.0970
300-235B54015012.8781450375.0925
300-25072020020831450556.01085
300-250A60016617811450456.0980
300-30072020028821480755.01230
300-300A60016624801480755.01095
300-300B54015021781480555.0980
300-31572020032841480904.51350
300-315A65018028801480754.51240
300-315B58015124781480554.51100
300-3807202004484970132.05.01900
300-380A6661853880970110.05.01700
300-380B614170.6327897090.05.01530
300-3907202001881980555.01300
300-390A6001671579980455.01220
300-390B54015012.577980375.01100
300-400600166507814801105.01500
300-4807202002881980755.01500
300-480A6001662480980755.01280
300-480B5401502179980555.01180

350-235

80022212.5831480374.51050
350-30080022220821480554.51230
350-31580022232841480904.51650
350-400800222508314801604.51950
400-300108030020781480906.01570
400-3151080300327614801326.01880
500-3001200333208014801106.01800
500-3151200333327814801606.02070


小贴士1:订货时请注明具体技术参数、使用工况以及使用介质特性,以便能为您选择很合适的产品。

小贴士2:泵长期运行后,由于机械磨损,使机组噪音及振动增大时,应停机检查,必要时需更换易

损件(机械密封与电机轴承),机组大修期一般为5000-8000小时。

小贴士3:长期不间断使用此泵,推荐配备备用水泵,并用控制柜定时切换,以延长水泵使用寿命。

小贴士4:此泵严禁长期处于低扬程状态下运行,否则易使电机过载而烧毁。
